Página inicialDESOI M-Power 301
15027_DESOI M-Power 301_M.jpg
15027_DESOI M-Power 301_M.jpg 15027_DESOI M-Power 301_Manometer.jpg 15027_DESOI M-Power 301_Arbeitsstellung_M.jpg

DESOI M-Power 301

manometer 0 - 160 bar, 6 litre material container transparent with scale and cover, incl. instruction manual, No. 16802: HP hose - steel Ø 6 mm, 3 m, union nuts M12x1.5 (solvent resistant), No. 16806: HP ball valve (R1/4", external thread M12x1.5, mouth piece)
Vantagem/Nota
  • Deairing device for highly viscous material
  • Handy and light weight
  • Easy to maintain and cleaning
  • Manometer for pressure control
Material de entrada
  • epoxy resin
  • polyurethane
  • quick-foaming polyurethane
Dados técnicos
Working pressure - acc. to compressive force 0 - 120 bar
Delivery rate 20 cm³/stroke
Weight 12 kg
L x W x H - working position 104 x 36 x 66 cm
L x W x H - transport 90 x 36 x 62 cm
Descrição do produto

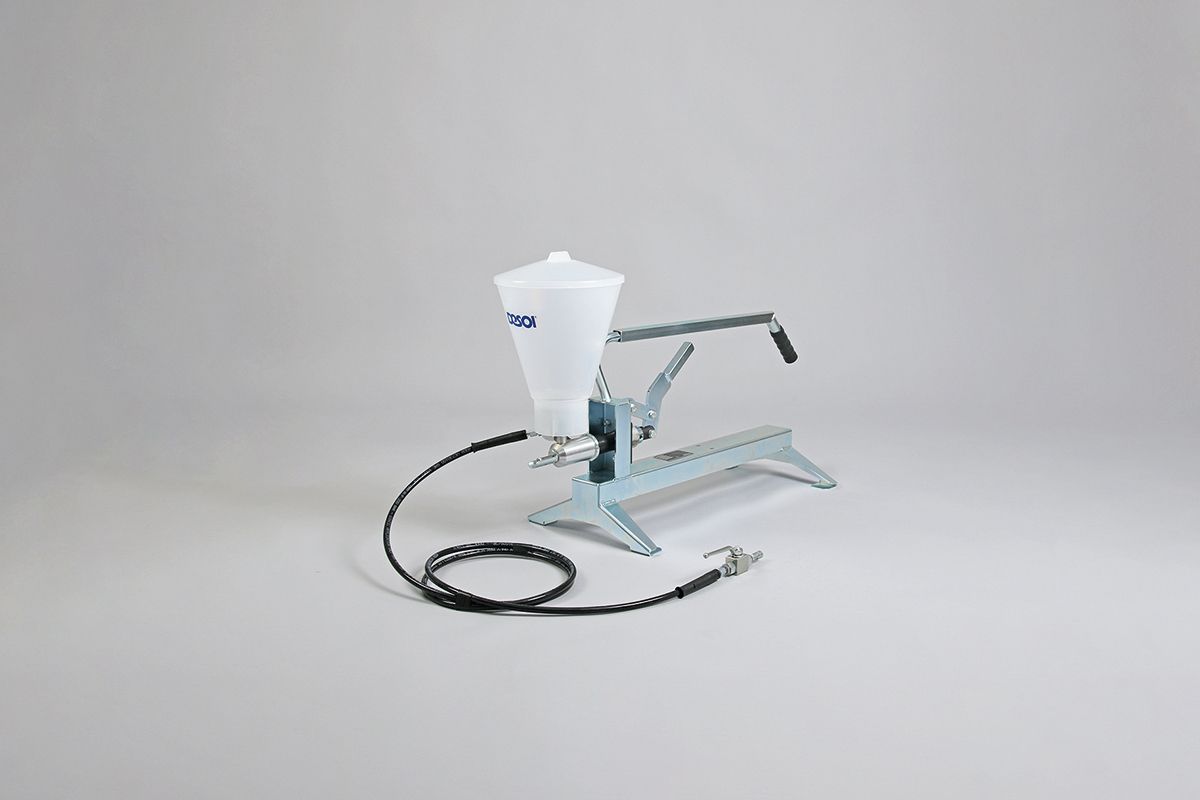

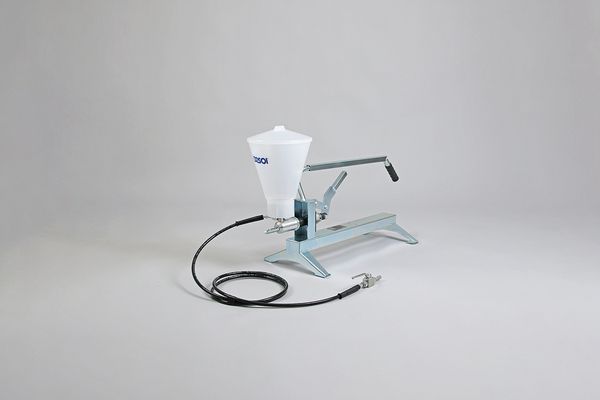

The simple and robust design is the special feature of the manual reciprocating pump DESOI M-Power 301. The pump is ideal for small and short-time service on site. By the slottet ring, the guid ring as well as the piston seal the pump is very low wearing.
