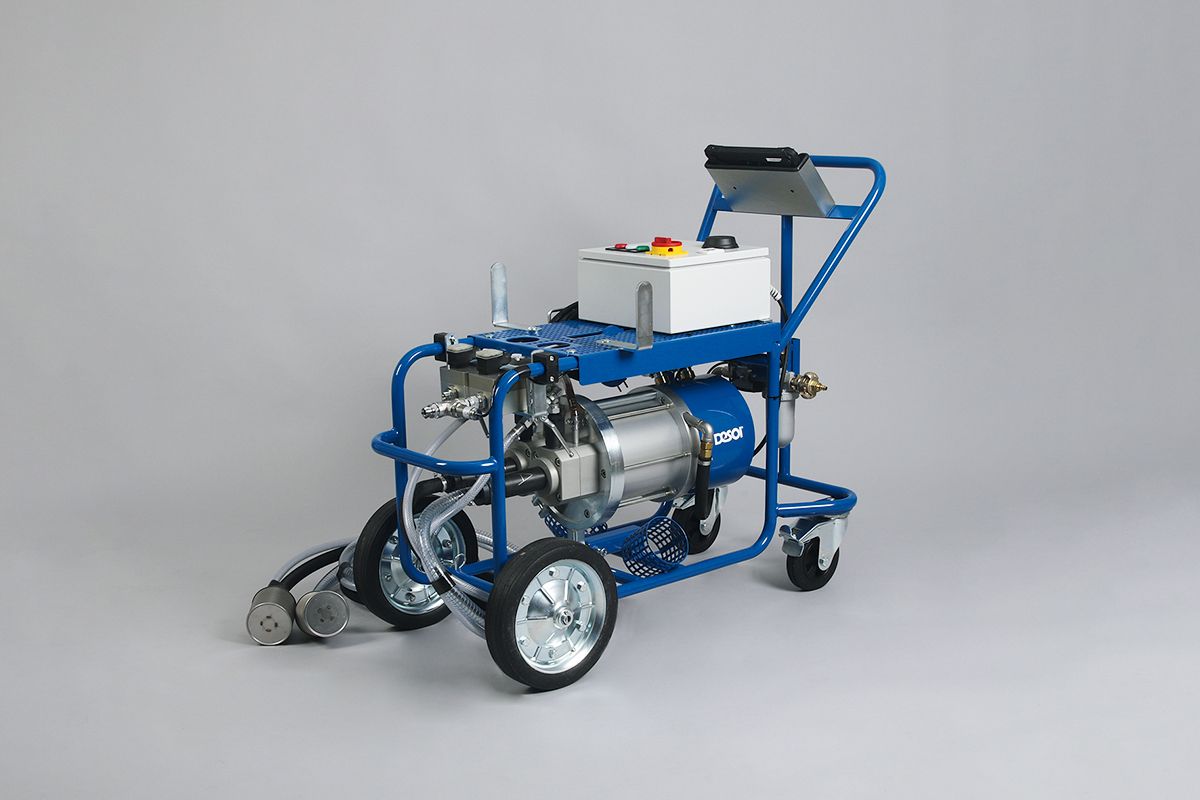

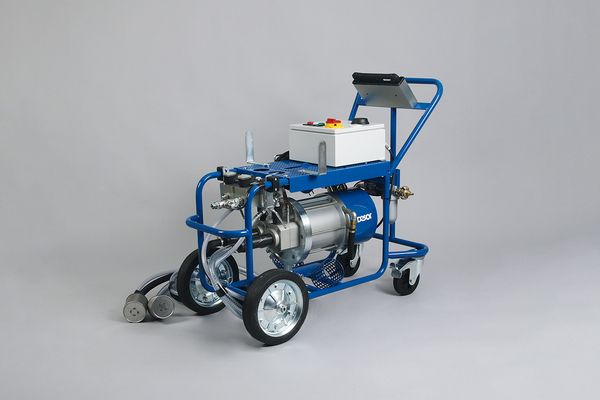

DESOI w.i.l.m.a. - PU
DESOI AirPower L36-2C

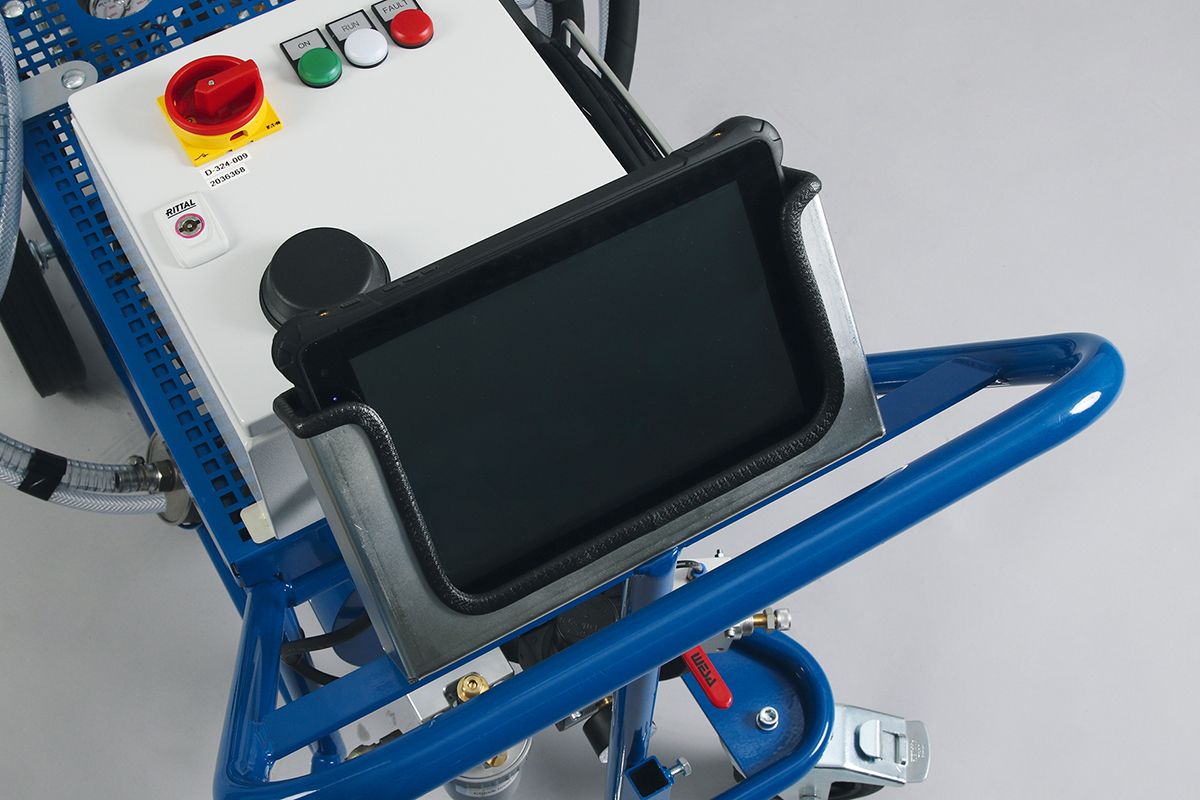

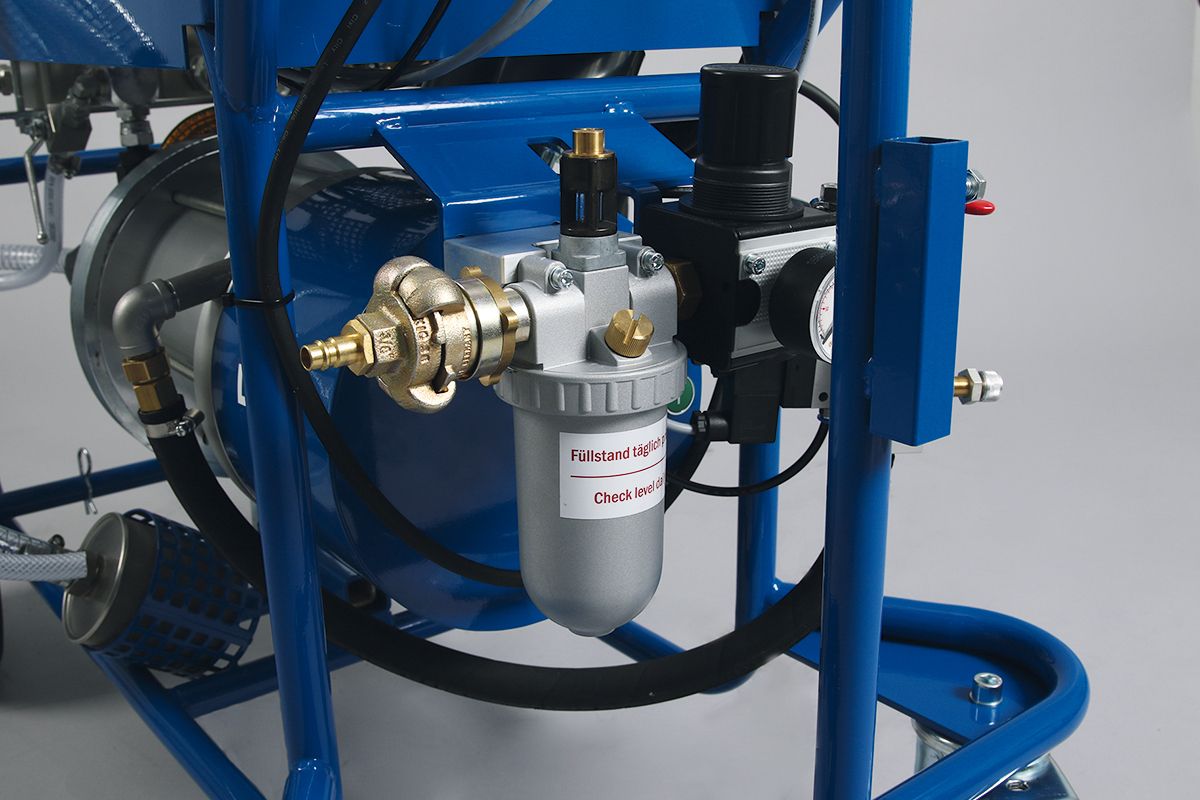

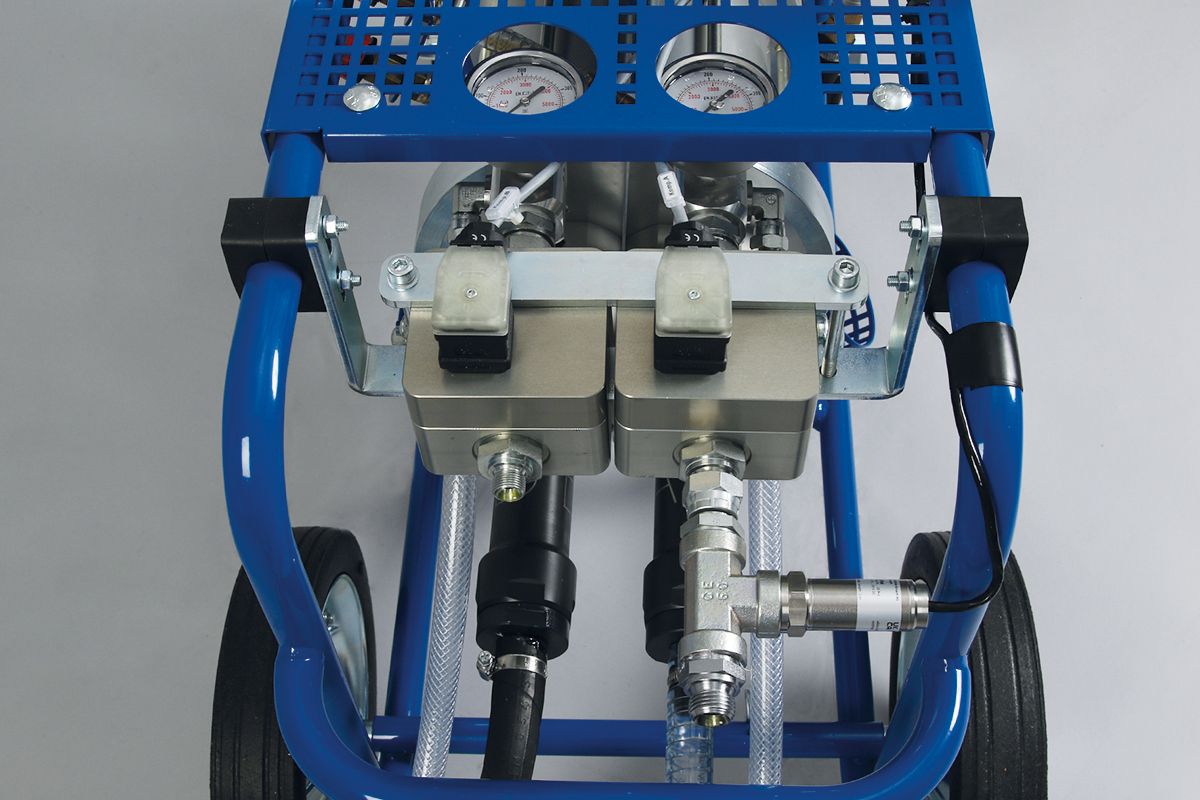

moving device, 3 m suction system Ø 20 mm with suction basket Ø 100 mm: component A: transparent, component B: black, 2 x manometer 0 - 400 bar, material hose connection: component A: external thread G1/2", component B: external thread G3/8", return hoses Ø 13 mm: transparent, air connection set: claw coupling 42 mm, air plug NW7.2; DESOI w.i.l.m.a.: control cabinet with integrated control, 10 m supply cable, on/off switch, control lamp, 2 x flow sensors, pressure sensor, Tablet Microsoft Surface Go 2 Platinum with protective cover, incl. instruction manual > A professional briefing is mandatory. > This is free of charge via video conference. > On-site instruction is also possible by arrangement and at a charge. > Arrival and departure are charged at cost. > A tariff must be selected for the w.i.l.m.a. data management system.
Vantagem/Nota
  • Big material passages
  • Easy maintenance and repair
  • Fixed mixing ratio 1 : 1 - continuously electronically monitored
  • You can find more information on the application and process techniques with the DESOI w.i.l.m.a. in the STUVA ABI leaflet "Sealing of structures by injection", 4th edition - Part III/1.3.2 from p. 57.
Material de entrada
  • silicate resin
  • 2C polyurethane
Dados técnicos
Working pressure - infinitely variable 5 - 200 bar
Delivery rate max. 20 l/min
Air consumption 2.5 m³/min
Transmission ratio 1:25
Mixing ratio 1:1
Air pressure max. 8 bar
Weight 110 kg
L x W x H 116 x 56 x 98 cm
Control cabinet
Supply voltage (adjustable ex works) 110 - 230 V/0,5 Ampere
Storage type digitally on tablet
Data transfer WLAN
Measuring range - volume (depending on the sensor) 100 l/min.
Measuring range - pressure (depending on the sensor) max. 250 bar*
Measurement accuracy ± 2 % v ME
Weight 8.62 kg
L x W x H 30 x 19 x 33 cm
*1 bar = 105 Pa. (Pascal)
Tablet
Storage type digitally on tablet
Hard disk space 64 GB
Data transfer WLAN
Weight - tablet 1 kg
L x W x H - tablet 28 x 20 x 3 cm
Descrição do produto
For the processing of PU and silicate resins the combination DESOI w.i.l.m.a. with the piston pump DESOI AirPower L36-2C is the optimal solution. Due to the large dimensioned material passages, the piston pump is also suitable for highly viscous injection materials and achieves a delivery rate of max. 20 l/min at a mixing ratio of 1:1. DESOI w.i.l.m.a. monitors and documents the material consumption, the injection pressure and the mixing ratio.
